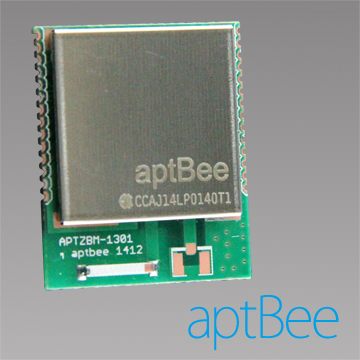

▌AptBee^® RF Module

Click icon to view large image

This module can be used to connect with different sensor devices or controllable equipment to build an end device or a router node in a wireless sensor network. Nodes communicate with each other using the ISM band radio frequency signals between 2.4 GHz and 2.5 GHz.
Main features:

Frequency range: 2.405GHz ~ 2.480GHz
Power source: 3.3Vdc
Antenna: chip antenna or whip antenna
Protocols: IEEE 802.15.4
Control interface: UART or SPI
Dimension: 23x27x2.1mm
Communication range: up to 100 meters

Certification: NCC(Taiwan)
comply with FCC standards.

Download:

AptBee 2.4GHz Radio Frequency Module(Date:2014-04-15, Download count: 1,606)
