AptBee Battery Monitoring System

Click icon to view large image

▌Features

  • • Integrates Wireless Sensor Network and Cloud Computing system
  • • Web-based browser and Mobile App as a remote management user interface
  • • Periodically measure voltage, current, temperature and internal resistance per battery
  • • Multiple upper/lower limits and conditioning alarm methods per measurement parameter
  • • Permission-based control of data and device control
  • • Historical data query and export functions
  • • Grouping of devices
  • • Wirelessly transfer measurement data
  • • High scalability and availability


▌Applications

  • • UPS batteries monitoring
  • • Renewable energy management systems


▌Description

The AptBee Battery Monitoring System integrates the wireless sensor network devices and the cloud computing system developed by AptObject Corporation. The system supports customers to monitor batteries installed in UPS systems or renewable energy management systems. Besides, this system applies state-of-the-art technologies providing remote management via mobile devices.

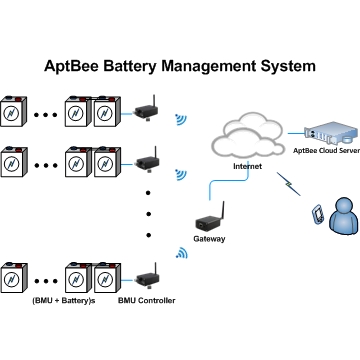

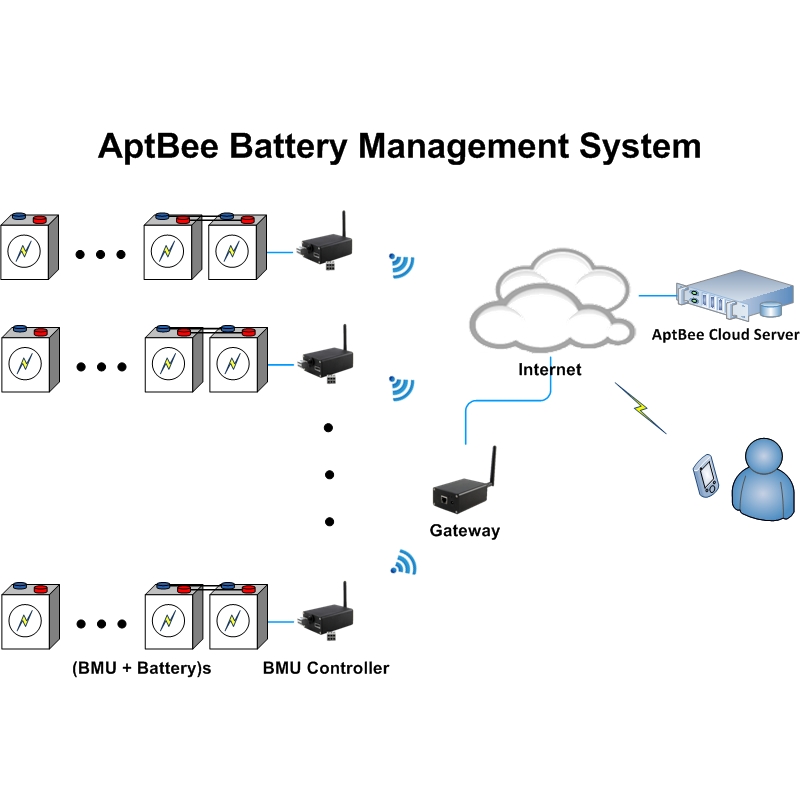

In a scenario of the battery monitoring application, this system collects all the measurement values from the battery measurement unit and transmits to the gateway device wirelessly. Measurement parameters include voltage, current, temperature and internal resistance per battery. The cloud computing system is in charge of storing, analyzing and processing all the received data from the gateway device through Internet. The processed result is then “pushed” to the corresponding person in the system to avoid damaged batteries exist in the UPS system to discontinue the regular services when emergency events occurred.

▌Main components

Model: SYS_BMS_1311

  • AptBee Cloud Computing Server
    • 1U Rackmount server
    • Intel Xeon 3.2GHz CPU
    • 1TB HDD x 2, RAID 0
    • 8GB RAM
    • 100/1000 Mbps Ethernet x 2
    • AptBee IoT Gateway
      • ARM Cortex-A8 1GHz CPU
      • 2GB Flash
      • 1GB RAM
      • 10/100 Mbps Ethernet
      • 2.4GHz RF IEEE802.15.4/ZigBee
      • AptBee Battery Measurement Unit Controller
        • 2.4GHz RF IEEE802.15.4/ZigBee
        • Connects maximum 254 battery measurement units
        • Connects 1 current sensor
        • Current Sensor
          • Range: depends on requirement, max 500A
          • Battery Measurement Unit
            • Voltage: 0.9 ~ 16VDC
            • Temperature: -10 ~ 70℃
            • Internal resistance: 0.05 ~ 250mΩ
