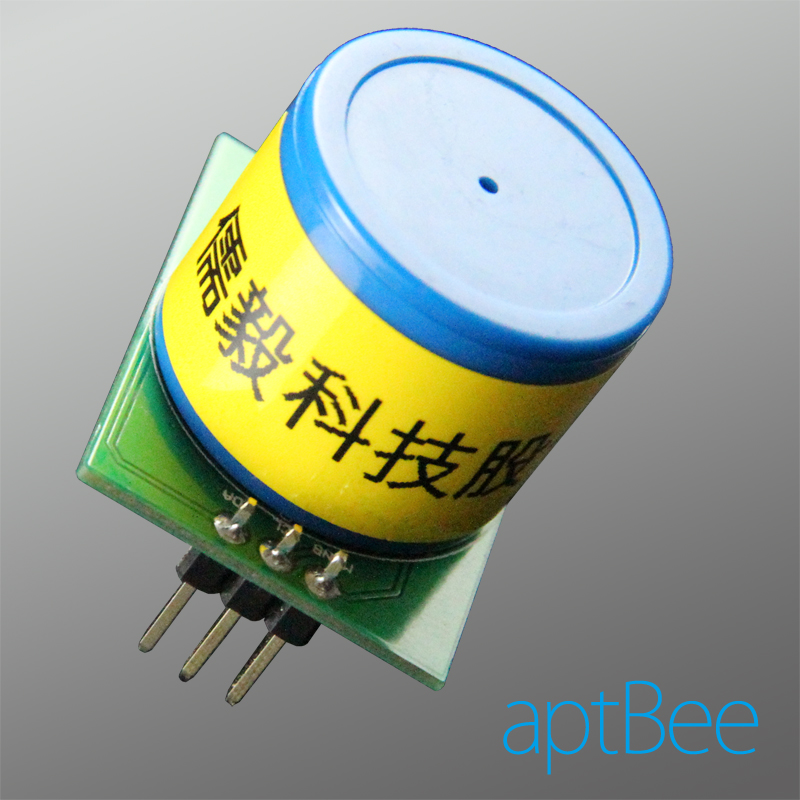

Carbon Monoxide(CO) Sensor Module

Click icon to view large image
This module uses a stable and high precision electrochemical carbon monoxide sensor device may sense a concentration of 0 to 1,000 ppm of carbon monoxide in the installation environment.

Developers can make use of a micro-controller or microprocessor via the I2C communication interface to operate this module.

Main specifications:

Sensor: Electrochemical carbon monoxide sensor
Measurement range: 0 to 1,000 ppm
Accuracy: +/- 15%
Expected lifetime: 5 years
Response time (90%): <50 seconds
Operating temperature: -20 to 50 ° C
Operating humidity: 15 to 90% RH
Power supply: 3.3VDC
Power consumption: 0.2W (Max)
Communication interface: I2C
