AptObject Corporation, High Accuracy Carbon Monoxide(CO) Sensor Module, Carbon Monoxide, CO, Module, I2C, Sensor,

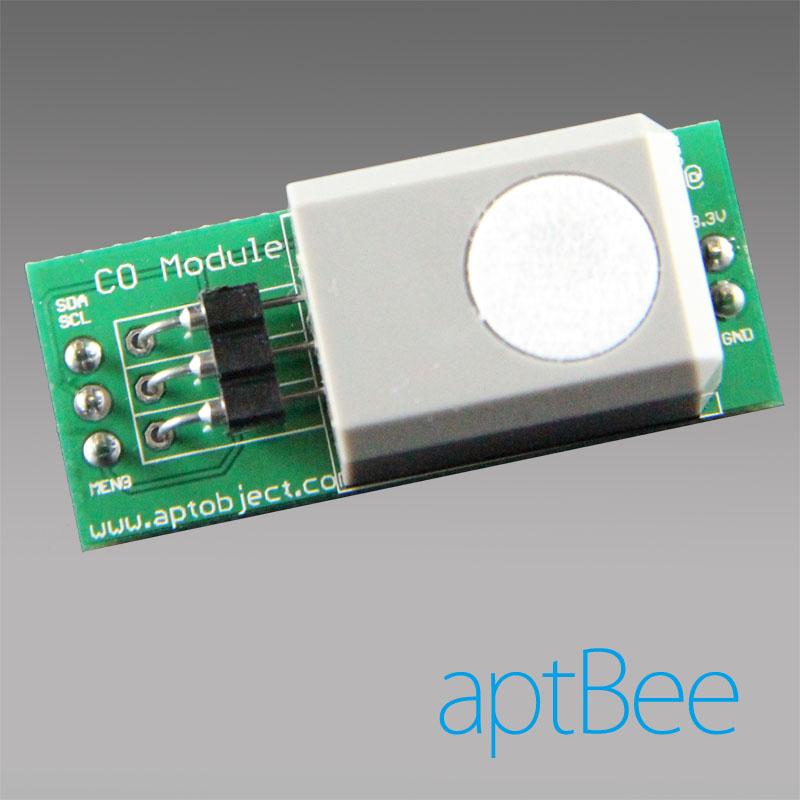

▌High Accuracy Carbon Monoxide(CO) Sensor Module

Click icon to view large image

This module uses a stable and high precision electrochemical carbon monoxide sensor device may sense a concentration of 0 to 1,000 ppm of carbon monoxide in the installation environment.

Developers can make use of a micro-controller or microprocessor via the I2C communication interface to operate this module.

Main specifications:

Sensor:Electrochemical carbon monoxide sensor
Measurement range:0 to 1,000 ppm
Response time (90%): <30 seconds
Accuracy: +/- 5%
Expected lifetime: 5 years
Operating temperature: -20 to 50 ° C
Power supply: 3.3VDC
Power consumption: 0.2W (Max)
Communication interface: I2C

* For consuming type carbon monoxide sensor module, please refer to the following URL

URL:http://www.aptobject.com/c?PRO=en.ProductView&id=75

Download:

AptBee Carbon Monoxide Sensor Module datasheet.pdf(Date:2014-04-14, Download count: 2,217)
